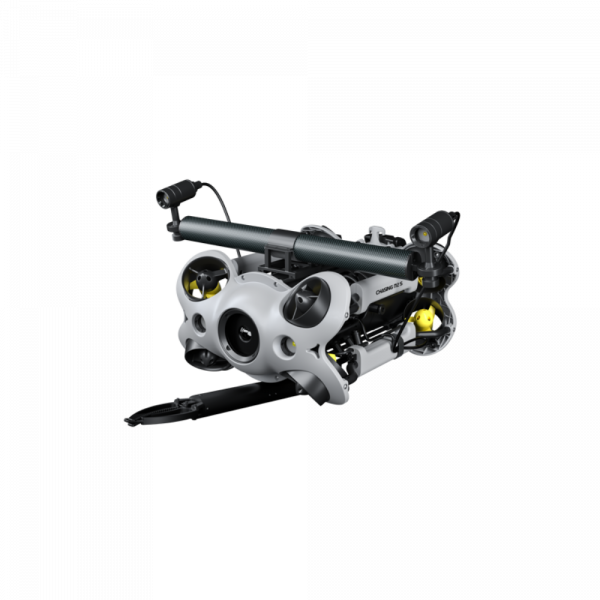

CHASING M2 S Advanced Set

Chasing M2 S has 8 vectored-thrusters which are symmetric and anti-stuck C-Motor 3.0 provide stable power, while the flagship sealed structure guarantees underwater operation performance. The ROV is compact and lightweight, easy to operate, and efficiently completes inspection tasks in various underwater operating scenarios in different industries. The ROV is portable and has a compact body. It has a "Single-person operation" and quick deployment brings an effective operating experience under a variety of scenarios.

Three mechanisms:

C-Sense control system, flexible and stable
All-scenario Efficient Operation System
HD Visual image Transmission System
A symmetrical vector layout of the eight thrusters of CHASING. This adopts a design where translation and rotation are independent of each other and supports 360-degree omnidirectional movement The NeptuneX intelligent flight control system is an exclusive CHASING navigation algorithm, that enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.

The third-generation Apex Anti-stuck C-Motor 3.0 is used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.

Chasing M2 S bodyweight is 4.5kg with Fully innovate waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations. The streamlined design of the butterfly wing outline at front and rear enhances the recognition and protects the propeller. CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance. The included battery of 97.68Wh can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optional to meet the needs of long-time operation.

The color restoration algorithm design is based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade the image transparency, clarity, color layering, and noise.

ROV Facts:
Size: 380267165mm
Weight: 4.5KG
Max depth: 100m
Runtime: 4 Hours
Battery: 97.68Wh
Operating temperature: -10℃~45℃

Remote Controller Facts:
Size: 160155125mm
Weight: 685g
Battery: 2500mAh
Runtime: ≥6H(depending on the environment)
Wireless: Wi-Fi Supported
HDMI: Supported
Handle spring: Maximum support 10 inch

Camera facts:
CMOS: 1/2.3
Lens: F2.8
Focus: 3.2mm
ISO Range: 100-6400
FOV: 150°
Max resolution: 12 Meg Pixel
Format: JPEG/DNG
Video UHD: 38402160 (4K) 30fps FHD:19201080 (1080p) 30/60/120fps
Slow motion: 720p8x (240fps), 1080p4x (120fps)
Time Lapse: 4K/1080p supported
Video stream: 60M
Video Format: MP4
SD Card: 64G

LED facts:
Brightness: 2*2000 Lumens
Color temperature: 5000K~5500K
CRI: 85
Dimming: Three gears

Sensor facts:
IMU: axis gyro/accelerometer/ compass
Depth sensor:＜±0.25m
Temperature sensor:＜±2℃

Charger facts:
Power: 2.9A/25.2V
ROV charging time: 2.5H
RC Charging time: 2H

What's in the box:
ROV
Remote control
Manual reel with 200 meter tether
2 spare motors
Floodlight 2
Grabber claw A
200WH battery
Carrying case
