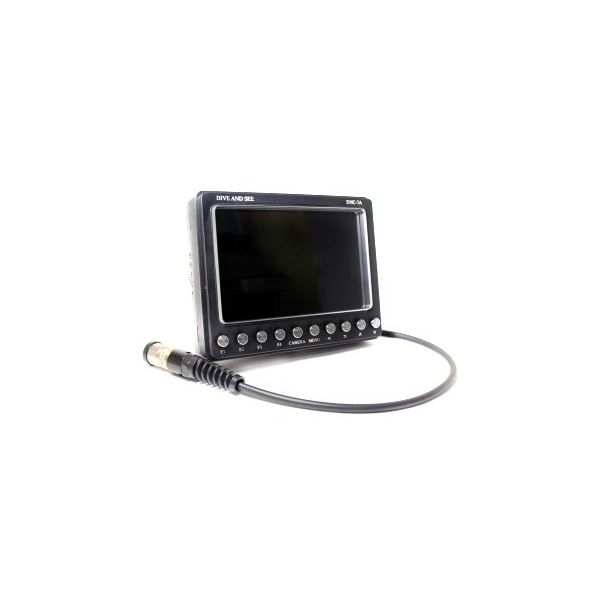

Dive and See DNC-7A(H1) 7" Underwater monitor /w HDMI input

The DNC-7A - underwater broadcast quality monitor with HDMI input, works seamlessly with Sony PXW-Z100, Blackmagic Cinema Camera, Panasonic GH4, Canon cameras, and any 4K cameras. Neutrally buoyant.Wide view angle allowed to see the color-critical picture without color distortion. The monitor have full menu access, battery status indicator and 4 user configurable push buttons, allowed user for quick access without scrolling through the menu. A large, bright external monitor gives you the ability to frame your shots and focus with great precision, the flexibility to swivel and tilt to any angle, and fits practically any housing, underwater camera.

The set includes:

• Monitor
• Appropriate bulkhead connector (1/2x20; M12; M14; M15; M16)
• 1 metal and 1 plastic protective cap
• Cold shoe ball mount
• Quick charger
• Sun shade

Durable & Sealed
Compact, rugged, safe design. The monitor guarantees NEMA 6 (IP 68). Strong and lightweight aluminum shell, over hard anodized coating, two layers of the special paint, resistant to salt water, perfect tool for professional underwater photography. The monitor is sealed and cannot be taken apart or opened. You will never get water or sand inside, or have to worry about properly sealing the monitor after charging it.

Mounting
The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with 1" ball on the end.
Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms. It is useful for  lighting or an external microphone.

Bulkhead connector
We have bulkhead connectors (fittings) for all brands of the housings. To chose your Bulkhead, see our Connectors production line. Custom length and other HDMI connector types are available.All of our bulkhead connectors have water blocks and are open face pressure rated to 150 PSI (100 meter).

Specifications

• HDMI monitor fits and works with all brands of the housings
• Screen Size: Diagonal 7" (16:9)
• Display panel: IPS LED
• Physical Resolution: 1280 x 80
• Video signal input: HDMI
• Video Formats: 59.94Hz(NTSC); 50.00Hz(PAL); 24.00Hz (CINEMA); 1080/24p/25p;50i/50p;60i/60p;720/50p/60p;480i/480p; 576i/576p
• Brightness: 400 cd/m2, sunlight readable
• Depth Rating: 197 ft / 60 m, can use above water as well
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
• Battery Life: One charge - 5 hours of  continuous use.
