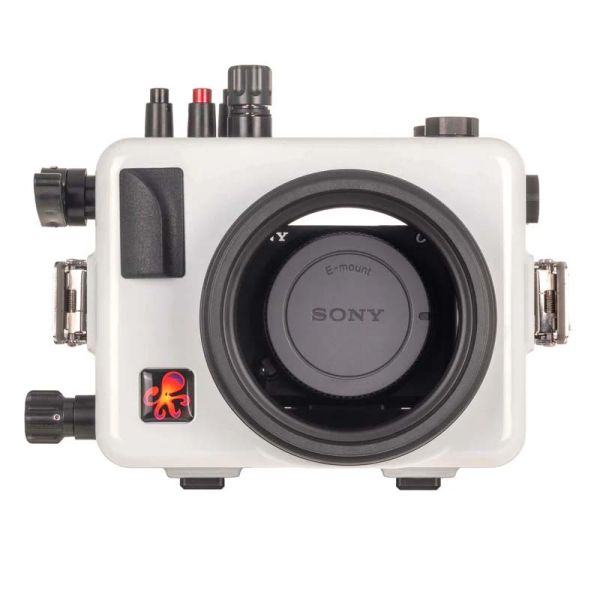

Ikelite 200 DLM/A underwater housing for Sony ZV-E10 #69122

The 200DLM/A Underwater Housing combined with the Sony ZV-E10 is a compact and affordable option for great video while scuba diving, freediving, surf, pool, or any adventure. The ZV-E10 features a 24 megapixel APS-C CMOS sensor capable of UHD 4K video. It provides good battery life in a small form factor designed to appeal to vloggers and casual shooters.

LENS PORT REQUIRED (Sold Separately)
A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting in this port chart.

The housing has controls for all camera functions W/T (zoom) lever. Zoom function is supported via the lens' zoom ring when using a compatible DLM port and zoom gear. Refer to the DLM/A Port Chart for information on specific lenses.

Wi-Fi transfer:
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Pre-dive checks:
There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks prior to entering the water.

Specifications:
Port Mount: DLM (Dry Lock Micro)
Accessory Port: 1/2-20 Thread and M16 Thread
Depth Rating: 200 feet (60 meters)
Weight: 2.6 lb
Dimensions: 7.25 x 5.5 x 6" (184 x 140 x 152 mm)
Construction: ABS-PC blend
Rear O-Ring (back wall): 0110
Front O-Ring (port): 0132.36

In the box:
Housing
Rear O-Ring # 0110 (installed)
Front O-Ring # 0132.36 (installed)
.050" Hex Key # 0945.11
1/16" Hex Key # 0945.16
Silicone Lubricant 1cc Tube
