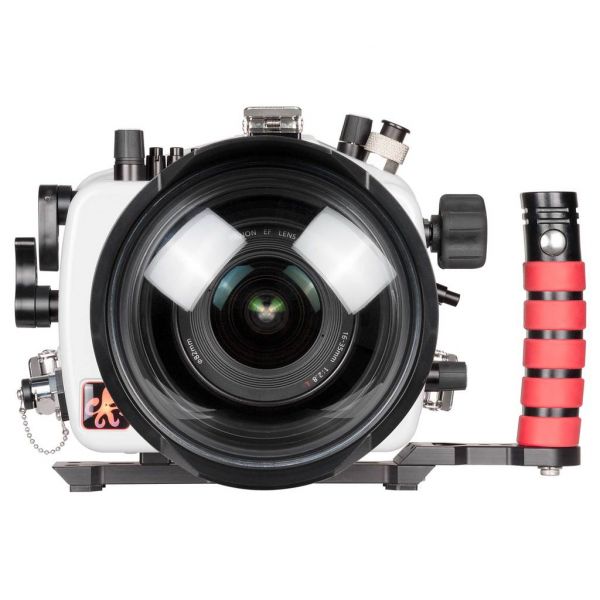

Ikelite 200DL housing Canon EOS 70D #71712

A full featured and durable waterproof housing for Canon EOS 70D DSLR cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

Lens Ports

This housing features our robust new Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.

Vacuum System

The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge # 47011, sold separately.

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

TTL Exposure

This housings supports your choice of shooting manual strobes or adding TTL electronics depending on your application.

Controls and Set-Up

Shutter and AF-ON levers stand out with super sensitive and natural feeling curved levers.  Both controls can be extended using the optional Shutter Trigger Extension # 4077.93 for more comfortable use when using a right-hand quick release handle.

All push button controls are machined and hard anodized aluminum to reduce weight and resist salt build-up. The back of the housing is laser engraved with control symbols which will never fade or fall off.

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.

Specifications

200' (60m) depth rating

Compatible with DL system lens ports

Controls are provided for all important camera controls; Controls are not provided for LCD panel illumination button, Depth-of-field preview button, Dioptric adjustment knob, Multi function lock switch

1/4-20 thread base mounts with 3.5" spacing

Near neutral buoyancy in fresh water

Actual buoyancy varies depending on choice of lens and port

4.8 lb (2.2 kg)

9.2 x 7.1 x 6.6" (234 x 180 x 168 mm)

Vacuum valve included (pump sold separately)

Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes

ABS-PC construction is fundamentally corrosion-resistant

In the Box

Housing

Rear O-ring # 0132.59 (installed)

Front O-ring # 0132.45 (installed)

Base with Left-Hand Quick Release Handle # 4077.67

Port Hole Cover # 0200.92 (installed)

Waterproof Bulkhead Cap # 9104.5 (installed)

Zoom Gear Retainer # 75900 (installed)

Tool for Zoom Gear Retainer # 0945.06

4-40 Hex Key # 0945.11

1/16" Hex Key # 0945.16

1/8" Hex Key # 0945.18

Control + Push Button Tip Assortment # 9249

Silicone Lubricant 2cc Tube # 0184.2
