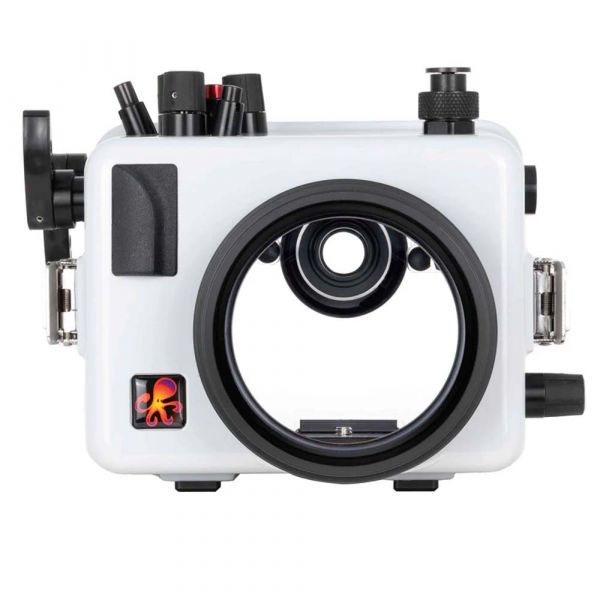

Ikelite 200DLM housing for Canon EOS R10 #69742

Controls are provided in this housing for everything except Diopter Adjustment Slider, Multi-Controller (can be pressed straight in), Depth-of-Field Preview Button and Focus Mode Switch. To connect a strobe to the housing t here is a bulkhead with manual hotshoe installed.

With the DLM (Dry Lock Micro) port system you can use a lot of lenses underwater. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using. To check if there is an option for your lenses, please view the port chart here. A port is not included with the housing.

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks prior to entering the water.

Specifications:

Port Mount:DLM (Dry Lock Micro)
Accessory Port: 1/2-20 Thread
Depth Rating: 200 feet (60 meters)
Construcion: ABS-PC blend
Weight: 3 lb
Dimensions: 7.5 x 5.9 x 6 in (191 x 150 x 152 mm)

In the box:
Housing
Rear O-Ring # 0110 (installed)
Front O-Ring # 0132.36 (installed)
Waterproof bulkhead cap # 9104.7 (installed)
Silicone lubricant 1cc tube
