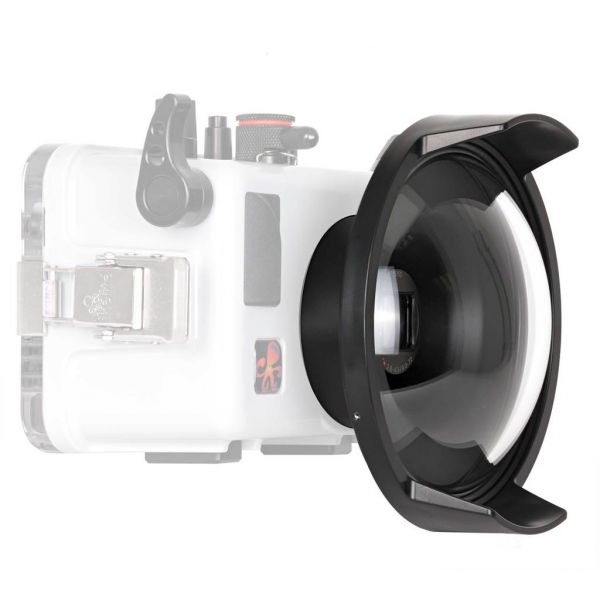

Ikelite DC3 6 Inch Dome for compact housings #6403

Wide angle, macro, and zoom
Underwater, the dome corrects for refraction to provide the full 25mm wide field of view. That's substantially wider than a flat port, which reduces the field of view to approximately 33mm.

Over-unders (split shots)
At the surface, the large dry dome gives you greater control to get a clean, smooth water line when shooting split shots (half-in, half-out of the water). This type of shot can be impossible to get with a flat port, and extremely difficult with a wet lens or dome where you're fighting double water lines.

Ease of use
The dome replaces the standard port on the housing. Simply unthread the standard flat port and thread in the DC1 Dome unit. We recommend a rubber strap wrench commonly available at your local hardware store or as product # 0945.01 (not included). The included dome shade reduces reflections, protects the dome, and allows you to set the housing down on its face for easy assembly and disassembly.

Compatibility

-Ikelite Housing for Canon PowerShot G16 TTL # 6146.17
-Ikelite Housing for Canon PowerShot SX620 # 6242.62
-Ikelite Housing for Canon PowerShot SX700, SX710 # 6148.70
-Ikelite Housing for Canon PowerShot SX720 # 6148.72
-Ikelite Housing for Canon PowerShot SX730 # 6148.73
-Ikelite Housing for Panasonic Lumix ZS100, TZ100 # 6170.10
-Ikelite Housing for Panasonic Lumix ZS200, TZ200 # 6170.12
-Ikelite Housing for Panasonic Lumix ZS50, TZ70 # 6170.50
-Ikelite Housing for Panasonic Lumix ZS70, TZ90 # 6170.70
-Ikelite Housing for Panasonic Lumix LX100 I, LX100 II # 6171.11
-Ikelite Housing for Sony Cyber-shot HX50, HX60 # 6115.50
-Ikelite Housing for Sony Cyber-shot HX80, HX90, HX99, WX500 # 6115.90
-Ikelite Housing for Sony Cyber-shot RX100 Mark VI # 6116.17 / 6116.18

Specifications
Acetyl body with acrylic dome
Weight 13 oz (376 g)

In the Box
Dome Port
Dome Shade # 5516.05 (installed)
O-ring # 0119.2 (installed)
Neoprene cover # 0200.1
Silicone lubricant 1cc tube
