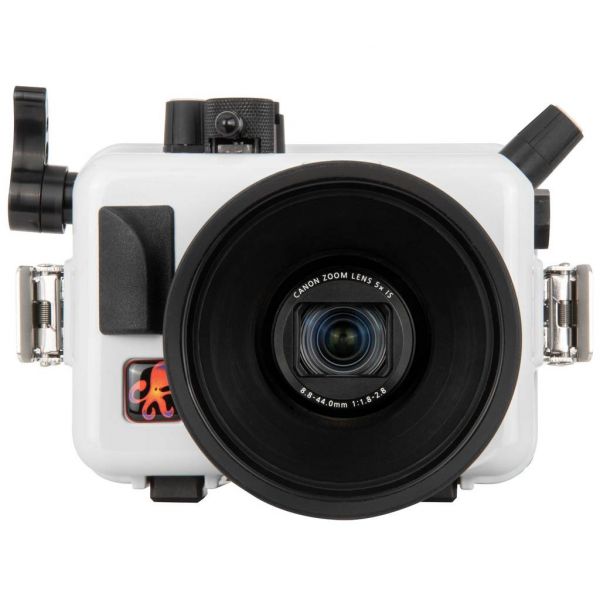

Ikelite housing for Canon PowerShot G5 X Mark II #6146.06

This housing is designed to use the full capabilities of the camera up to depths of 200 feet (60 meters). A perfectly clear back provides a view of the camera and o-ring seal. The back is removable, not hinged, for extra durability and easier camera access. It attaches quickly and easily with two heavy duty stainless steel locking latches. All important camera controls are accessed via fully serviceable controls with premium soft touch control knobs.

Construction

The ABS-PC blend housing provides strength and corrosion free performance year with minimal maintenance. The specially formulated color deflects the sun to keep your camera running cooler, longer. Compared to black or clear housings, the light color provides superior contrast for enhanced view of the camera, LCD screen, and o-ring seal.

Ikelite products are designed, built and tested in the USA. We use locally sourced, top-grade materials. Our housings are built by hand and individually tested for fit, function and waterproof integrity. We back our products with over 50 years of experience and service within the dive industry.

Ergonomics

Drop-in camera loading makes this housing a breeze to set up and shoot. Good ergonomics are critical when you need to concentrate on composition, focus, and proper exposure. A large, curved control lever puts the shutter control right where you need it. The shutter lever can be extended using the optional Trigger Extension #4077.93 for perfect spacing when using a right-hand handle.

The rotating controls are all operated intuitively via premium soft-touch knobs. Stainless steel, direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.

All rear camera buttons are accessible by smooth action, hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.

The camera's large LCD screen can be seen clearly through the back of the housing.

Flash

Due to the position of the camera's flash in relation to its lens, the built-in flash is not suitable to illuminate photos under water. For the best color and clarity, we recommend adding a filter, strobe, or constant-on light.

Two ports are provided for the connection of up to two Ikelite-, SEA&SEA-, or Olympus-type fiber optic cords. Any Ikelite DS strobe may be connected using the Fiber Optic Converter # 4401.3 and Fiber Optic Cord # 4501. The AF35 strobe is not compatible with this housing.

Specifications

200 ft (60 m) depth rating

Controls for all camera functions except touchscreen and Flash pop-up button (flash must be extended when installing the camera in the housing)

Two built-in fiber optic ports

Slightly negative buoyancy in fresh water

1/4-20 threaded tray mounting with 3" (76mm) spacing

Weighs 2.7 lb (1215 g)

6.9 x 4.9 x 5.9" (175 x 124 x 150 mm)

3.9" diameter glass lens port supports full zoom range 24-120mm

In the Box

Housing

Rear o-ring # 0109 (installed)

Vinyl port cover # 0200 (installed)

.050" hex key # 0945.11

1/16" hex key # 0945.16

Silicone lubricant 1cc tube


 Manufacturers user manual
