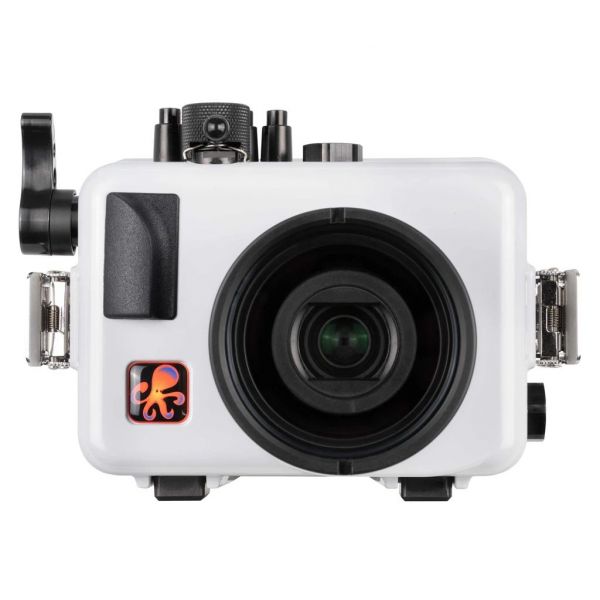

Ikelite underwater housing for Sony ZV-1 #6116.21

The ZV-1 camera does not feature a built-in flash. External strobes may be electrically triggered by adding the optional C1 Hotshoe #46071 and B1A Bulkhead #46002.

Wide Angle, Macro & Filters

The 3-inch diameter port feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses. The WD-3 Wide Angle Dome provides mid-range angle of view with no vignetting (dark shadows in the corners of the image).

The INON UWL-H100 and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, some vignetting and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

External macro lenses with 67mm threads as the INON UCL-165 M67 can be attached directly to the front of the housing's port.

3" diameter color filters press directly onto these ports. Most wide angle lenses require a 3.6" diameter color filter. Refer to the product page for information on color filter compatibility.

Optional 6" dry dome

The DC3 6" Dome Port #6403 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 24mm wide angle and is perfect for split shots (half-in, half-out of the water). Approximately 3/4 of the camera's zoom range is usable behind the dome and macro images can be captured with the dome installed.

Specifications

200 ft (60 m) depth rating
Controls for all camera functions except touch panel; Wind screen is not usable inside of the housing
Slightly negative buoyancy in fresh water
1/4-20 threaded tray mounting with 3" (76mm) spacing
2.6 lb (1180 g)
6.8 x 5 x 5.4" (173 x 127 x 137 mm)
3" diameter glass lens port

In the Box

Housing
Rear o-ring # 0109 (installed)
Vinyl port cover # 0200 (installed)
Silicone lubricant 1cc tube
