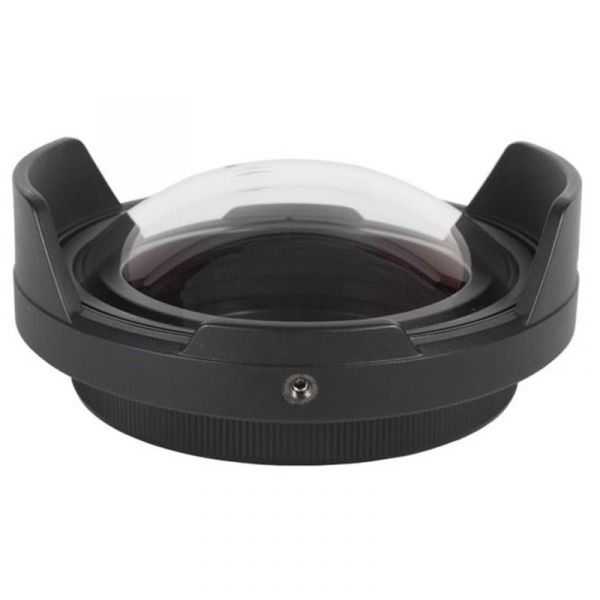

INON Dome Lens Unit II for UWL-S100 ZM80

Product features

●The Dome Lens Unit II functions as a semi-fisheye converter when attached to an INON UWL-S100 ZM80 wide conversion lens which is designed to use with focal length setting at 80mm (35mm film equivalent) (*3), to widen its original view angle 100° to maximum 149.8° to support one step up ultra wide imaging.

●Maximum outer diameter is only 97.8mm/3.9in including its shade and underwater weight when assembled with UWL-S100 ZM80 is approx. 176g/6.2oz which does not obstruct confortable handling underwater.

●It’s easy to assemble with the UWL-S100 ZM80 (*4). Only inserting the UWL-S100 ZM80 with extra O-ring in this dome and tighten a screw ring by hand. No special tool is required.

●Unique optical design allows to shorten minimum focal distance (minimum focus distance 0cm) with ultra wide view angle thus effective for Wide Macro shot.

●Its optical construction carries hard coating on its outer surface and anti-reflection multi-coating/antifouling coating on its inner surface to minimize flare and ghost in combination with a packaged protector (*5) to enhance durability and user friendly maintenance.

(*3)
Some cameras can recall preset zoom setting like custom function of the Canon PowerShot G15 or zoom memory of the Panasonic LUMIX TZ30. Refer to respective user manual for detail.

(*4)
The Dome Lens Unit II for UWL-S100 ZM80 must be assembled with the UWL-S100 ZM80 on land.

(*5)
The protector is attached/detached as necessary.
