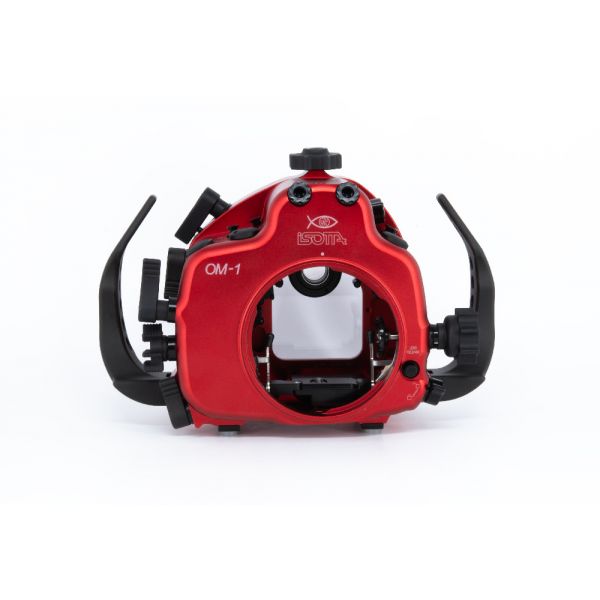

Isotta underwater housing for OM SYSTEM OM-1

Ergonomic underwater housing for OM System OM-1 camera. This housing is made of aluminum what stands for high quality,solidity and reliability. In this underwater housing and the necessary lens port (optional) you can take the most beautiful underwater images up to a depth of 100 meters.

Functions that can be operated:
• ON/OFF lever of the OM System OM-1
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Front dial
• +/- button (Exposure compensation)
• Mode dial lock button

• AF/metering mode button
• Sequential shooting/self-timer/ flash button
• ZOOM gear;
• Port safety lever
• Movie button (REC)
• AF-ON button
• Rear dial
• Mode dial
• Menu button
• AEL button
• Arrow pad
• Playback button
• OK button
• One-touch white balance button
• FN lever
• Externa flash ON/OFF lever
• INFO button
• Erase button
• ISO button
• Multi selector button

Specifications of this OM-1 underwater housing:
• Red color anodized aluminum body;

• Ergonomic side handles, adjustable (via optional accessory);

• Two fiber optic connections standard (to use the flash needs an optional trigger);
• Three M16 holes and one M24 for installation of accessories, e.g. syncro cords, vacuum valves, monitors;
• Back housing completely detachable from the front housing;

• Tray with lock for the easy insertion of the camera;

• Single-hand closing knob for the back of the housing;

• Aluminum buttons and dials with engraved symbols identical to camera controls;
• Wide back display viewfinder glass;
• Double O-Ring seals on all buttons and removable parts;

• Moisture sensor with LED indicator (replaceable battery);

• Removable port 102 mm bayonet;

• Ports security latch to prevent accidental opening;
• Wide, rubber covered feet for solid footing on boat floors or sea floor;
• M8 hole located on upper side of the housing for various accessories such as focus lights;

• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;

• External viewfinders can be mounted, INON X-2 compatible;
• Sizes (LxHxP): 285.2x192.7x120.6;
• Depth rated to 100 metres;

This housing comes with: ISOTTA standard viewfinder, Moisture sensor, Fiber optic connections (to use the flash needs an optional trigger), Spare o-ring kit, Silicone grease 15gr / 0,5 oz;
