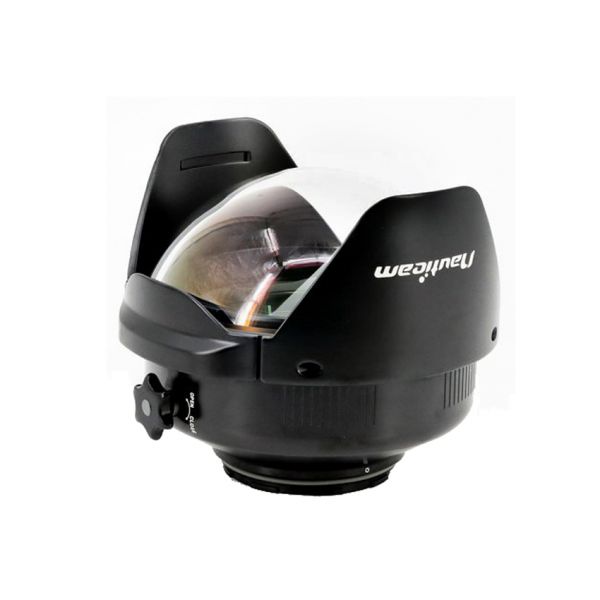

Nauticam 0.57x Wide Angle Conversion Port - 2 (WACP-2)

The WACP-2 is also able to focus in air, making it an even more capable imaging tool adding the ability to capture over-under images and even filming topside in wet environments. WACP-2 maintains the exceptional close-focus characteristics of the WACP-1.

The WACP-2's zoom-through capabilities means the underwater filmmaker or photographer can capture establishing, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance. Take for instance the Nikkor Z 14-30mm F/4 S lens which receives a field-of-view range of 81º to 140º with the WACP-2. This lens allows for acquisition of more dynamic content on each and every dive without the need for a second camera.

A radical new shade design allows for extending the shade out past the front element at longer focal lengths or during transport to further protect the dome while at wider focal lengths it cantilevers towards the outside to prevent vignette.

The WACP-2 is sure to be the uncompromising underwater image maker's tool of choice when looking for maximum optical quality, flexibility and performance.

Compatibility information:

FF Canon EF mount
EF 16-35mm f2.8L III USM /  128° - 72°
EF 16-35mm f4L IS USM  / 128° - 72°

FF Canon RF Mount
RF 15-35 f 2.8L IS USM  / 133° - 752°

FF Nikon F mount
AF-S 17-35mm f/2.8 IF ED  /  123° - 72°
AF-S NIKKOR 16-35mm f/4G ED VR  /  128° - 72°

FF Nikon Z mount
Nikkor Z 14-30mm f/4 S  /  140° - 81°

FF Sony FE mount
SEL1635GM FE 16-35mm F2.8 GM   /  128°  -  72°
SEL1635Z Vario-Tessar T* FE 16-35mm F4 ZA OSS  /  128°  -  72°


Technical specifications:

• Size: Ø 280 X 213mm
• Weight in air: 7,06 kg
• Weight in water: 0.48 kg
• Lens construction: 4 elements in 4 groups
• Depth rating: 100m
• Port system: N120
