The RED® KOMODO-X™

The RED® KOMODO-X™ camera features a 6K Super 35 sensor with up to 16 stops of dynamic range. R3D files (REDCODE RAW) can be recorded directly to CFast 2.0 cards, eliminating the need for expensive proprietary media. It also features Canon's new RF mount with full support for the Canon EF to EOS R lens adaptor, allowing a wide variety of focal lengths to be used. The RED® KOMODO-X™ is second in size only to the RED KOMODO, making it one of the smallest form factors in the RED Digital Cinema Lineup. This compact size is ideal for professionals who require high-end specs in a travel-friendly package—such as underwater filmmakers. The RED® KOMODO-X™ is equipped with the next generation of imaging sensors, featuring completely overhauled sensor architecture, updated pixel design, and significant improvements in both detail and color in shadows.

Introducing Nauticam RED® KOMODO-X™

Key Camera Specifications:

• 6K Super 35 Sensor (6144 x 3240)
• R3D Files (REDCODE RAW)
• Records to CFast 2.0 cards
• Canon RF-PL Lens Mount
• Dual Battery Mount (Canon BP-955/975)
• 12G SDI Out
• Integrated LCD Screen with Touch Camera Control
• Wireless Control from a Smartphone
• Global Shutter
• Anamorphic Options

Recording Formats:

REDCODE RAW:

• 6144 x 3240 at 40 fps
• 5120 x 2700 at 50 fps
• 4096 x 2160 at 60 fps
• 2048 x 1080 at 120 fps

ProRes 422 / ProRes 422HQ:

• 4096 x 2160 up to 60 fps
• 2048 x 1080 up to 120 fps

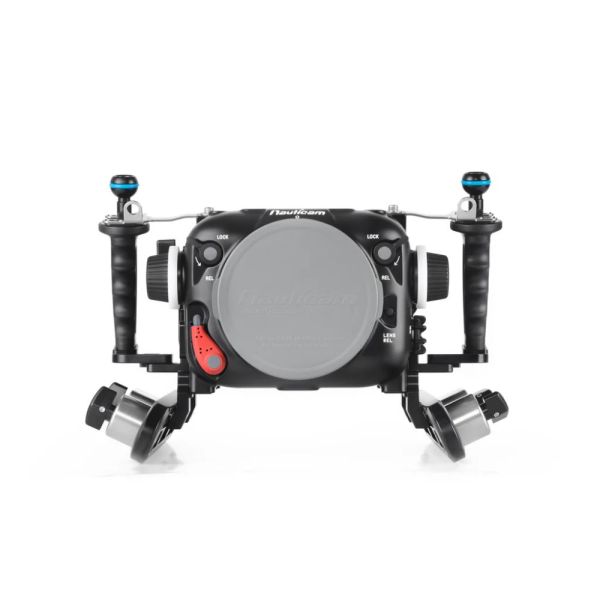

The Nauticam RED® KOMODO-X™ Housing

The Nauticam RED® KOMODO-X™ housing is designed for compactness and ease of use, offering a travel-friendly system. It integrates seamlessly with DSLR lenses and the N120 port system, providing an intuitive, tool-less setup. Quick lens changes and battery swaps are possible without removing the camera.

• N120 Cinema Port System: Compatible with other N120 Nauticam systems.
• Premium Optics: Supports WACP-1/2 and SMC-1/2.
• Adjustable Handles: Easy access to zoom and focus knobs.
• 1/4"-20 Cheese Plate: For accessory mounting.

Backed by Nauticam's 2-year warranty.

Lens Support

Compatible with RED RF-PL adaptors, the housing includes a locking RF mount for added security. The Canon EF to EOS R Adaptor is fully supported, and the left side features a command wheel for smooth ND filter adjustments. Lens changes are fast and require no tools. However, when switching between RF and EF lenses, you must remove the camera from the housing to adjust the RF to EF adapter.

For cinema lenses, the system supports the 16410 N120 to N200 Port Adapter, enabling quick lens changes, even in the field.

External Monitor Support

Supports mounting the SmallHD Ultra 5 or Ninja V monitor using the Nauticam NA-Ultra5 Housing or Nauticam Atomos Ninja V-S Housing, connected via SDI bulkheads for flexible monitor placement.

SDI Output

Required Accessories for SDI Cable System:

• 25058 M16 SDI Bulkhead
• 25060 SDI Cable (0.3m, 0.4m, and 0.75m options)

Recommended Monitor Housing:

• 17922S Nauticam Ninja V-S Housing
• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

Camera Control over Ultra 5 Monitor

• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5
• 16265R UW Camera Control Cable Bundle for NA

Ethernet Remote Control

Supports Ethernet Surface Feed (5m/45m) for full camera control through the RedControl App. The housing can accommodate a small Ethernet router for surface control.

Recommended Ethernet Cables:

• 16261 Ethernet Surface Cable Set (45m)
• 16263 Ethernet Surface Cable Set (5m)

USB-C to Ethernet adapter required for use with 16261/3.

Vacuum Check and Leak Detection System

The Nauticam Vacuum Check and Leak Detection System ensures the housing is water-tight and safe to dive. The color-coded LED system provides status updates, with audible and visual alerts for any leaks.
