Nauticam NA-A9III Housing for Sony A9 III

There are Nauticam ports available for all kind of lenses. We have published a blog about choosing the right Nauticam port for your lens in a Nauticam housing: How to select the right port, gear system or extension ring.

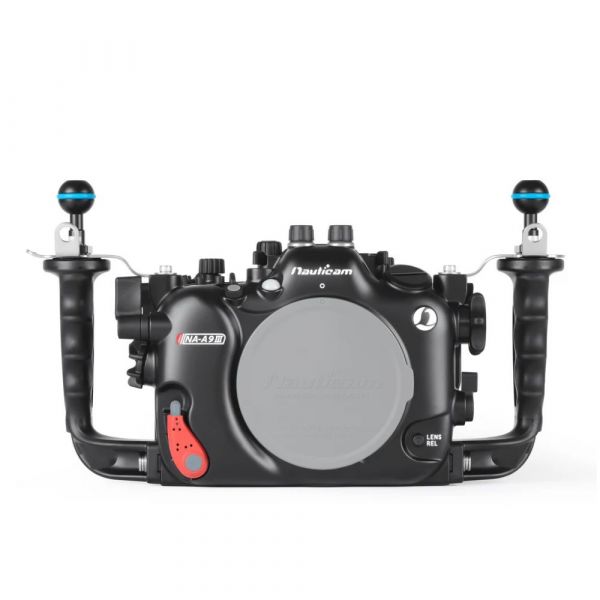

Nauticam NA-A9III Underwater Housing (# 17437)

The NA-A9III underwater housing gives you easy access to all the main controls of your camera. Inside, the design is smart, with important controls moved to the left and right handles. This makes it simple to adjust settings quickly and easy.

Technical Specifications

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-A9III as standard equipment. Combined with an accessory vacuum valve (PN 25624), this monitoring system provides constant updates on the water-tight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

Build Quality

Nauticam build quality is simply unmatched, using cutting-edge product design and modern, innovative manufacturing techniques that result in trouble-free reliability. A bit like a fine Swiss timepiece, the complexity under the hood results in a trouble-free user experience that just works, and keeps working for years to come.

What's In The Box:

• NA-A9III Housing
• 90120 Spare Main O-ring, o-ring remover, and lubricant
• CR-2032 Battery (for Moisture Alarm)
• Set of Allen Keys
• Instruction Manual Card
• 2x Optical Bulkhead Caps
• 2x Handles with Mounting Balls
• Padded Housing bag and shoulder strap

Premium Professional Optics

Nauticam is always creating new optical accessories to push the limits of underwater photography. These lenses are designed with modern software and optimized specifically for use in water, offering much better performance than standard lenses behind a dome or flat port. The NA-A9II can take advantage of Nauticam's top-quality Water Contact optics, like the FCP-1, WACP-1, or WWL-1B, which offer up to a 170º field-of-view, full zoom capability, and extremely close focusing. For macro photography, the SMC-1 and SMC-2 provide incredibly sharp magnification up to 4x with the Sony 90mm macro lens.

Viewfinders

The standard optical glass viewfinder is very good and travel-friendly, but many photographers prefer the ease of a magnified viewfinder with an adjustable diopter. Nauticam produces a "straight" 180º enlarging viewfinder and a 45º angled enlarging viewfinder to enhance the ease of close-quarters work often associated with macro shooting. Both viewfinders have high-quality optics and allow bright viewing of the entire image. A patented external dioptric adjustment allows personal adjustment to a sharp-as-a-tack standard underwater and viewfinder changes can be executed in less than 30 seconds without using tools. Exceptional composition and focus accuracy have never been more accessible.

Flash triggering

Please set the "Sync Terminal Settings" to always, then camera can output a flash signal to the Multi Interface Shoe when shooting.
MENU -> (Exposure/Color) -> (Flash) -> (Sync Terminal Settings) -> Always

Support and Downloads

NA-A9III Instruction Manual

Recommended Accessories:

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 26302 Mini flash trigger for Sony
• 25218 Mounting Ball Set for tripod
• 28130 Hand Strap for 18223
• 32203 45 viewfinder (slightly vignettes)
• 32211 Nauticam Full Frame Straight Viewfinder 32 / 1:1
• 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
• 32213 Nauticam Full Frame Angle Viewfinder 32 / 1:1
• 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1 *32212 / 32214 is preferred
• 26325 USB-C Bulkhead with USB-C Connector
• 26326 M24-M16 Adaptor for use with 26325
• 25413 27cm lanyard with 2 snap hooks

HDMI Output:

Required accessories for HDMI 2.0 Cable System

• 25086 M24 Adaptor for HDMI 2.0 Cable (incl. tightening tool)
• 25099 M24A2R20-M28A1R170 HDMI 2.0 Cable

Compatible Monitor Options:

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 Cable
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 Cable) with AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 26326 M24-M16 Adaptor
• 25100 HDMI )D-A) 1.4 Cable in 200mm length (for connection from HDMI bulkhead to camera)
• 25033 standard HDMI bulkhead with M16 thread (incl in 17923 Shinobi-H housing)

Compatible Monitor Options:

• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2'' 4k HDMI Monitor with HDMI 1.4 input.
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 Cable
• 25082 HDMI 1.4 Canle for Ninja V housing in 0.75m length (for connection for Ninja V housing to bulkhead) *25082 v1.4 cable is required for use with 17922 monitor housing.
