Nauticam NA-R5II underwater housing for Canon EOS R5II

There are Nauticam ports available for all kind of lenses. We have published a blog about choosing the right Nauticam port for your lens in a Nauticam housing: How to select the right port, gear system or extension ring.

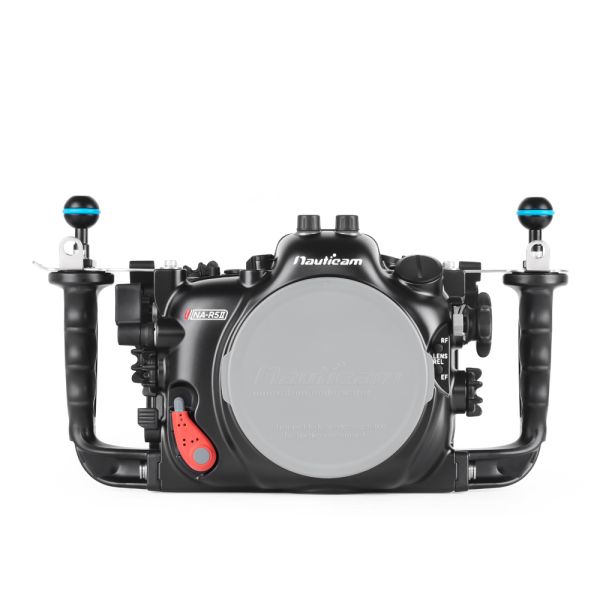

The Nauticam NA-R5II Underwater Housing for the Canon EOS R5II Camera

The NA-R5II underwater housing follows suit with Nauticam's drive for innovation. The Canon EOS R5II presents shooters with the ability to use both the available legacy EF lenses via an adapter in addition to their native RF optics.  To support both the legacy and native lenses, Nauticam has integrated the NA-R5II into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R5II inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. As the RF lens lineup emerges, dedicated port and extension ring combinations will be listed on the Port Chart. Two lens release buttons, one for RF and one for EF lenses used with the optional Canon adapter, are located on the front of the housing to make lens removal through the port opening simple.

Mission Control

Nauticam engineers are obsessed with getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles. This Mission Control philosophy extends to the NA-R5II where a dual thumb lever and dual sub-lever are placed by the right handle. The upper thumb lever activates the "AF-On" and the lower the "Q" buttons while the sub-lever corresponds to the "M-Fn" and "Record" buttons. Near the left handle is a thumb lever for "Playback" as well as a dedicated switch to change from using LCD to the EVF.

Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu", "Focus Point Selection" and others are also easily reached from the handles.

An additional control wheel is located on the left side of the housing and will interface with the control ring on the supported EF to EOS R Mount Adapter with the Control Ring using the optional gear (PN 19561).

Flash Triggering

Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26301) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection electronics are shipped with the NA-R5 as standard equipment. Combined with an accessory vacuum valve this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

HDMI Output with the NA-R5II housing:

1) Required accessories for HDMI 2.0 Cable System
25086 M24 Adaptor for HDMI 2.0 cable (incl. tightening tool)
25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)

Compatible Monitor Options
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)

25033 Standard HDMI Bulkhead with M16 thread (included in 17923 monitor housing)
25100 HDMI (D-A) Cable in 200mm length for NA-A1 (for connection from HDMI bulkhead to camera)
26326 M24-M16 Adaptor for use with 26325 (only required when use with M24 port)

Compatible Monitor Options

17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2'' Ak HDMI Monitor with HDMI 1.4 input
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
25082 HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922

Required Monitor Mounting Options

17951 Nauticam Atomos Shogun Housing Mounting System
17957 Nauticam Atomos Shogun Housing Mounting adaptor for NA-S1R/S1H/BMPCC/E2F (after SN A439736)
17954 Universal Tripod Plate for Nauticam Housings
17960 Universal Quadra-Pod Plate for Nauticam Housings

What's in the box

NA-R5II Housing
90121 Spare main O-ring, o-ring remover and lubricant
2x Optical Bulkhead Caps
2x Handles with mounting balls
Panasonic CR-2032 Battery (for moisture alarm)
Set of Allen Keys
Manual Instruction Card
Padded housing bag and shoulder strap
