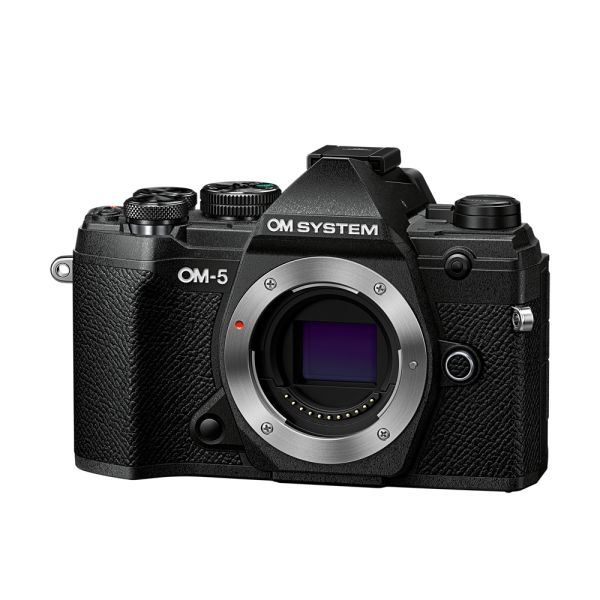

Olympus OM-5 body black

Name: Olympus OM-5 body black
Brand: OM SYSTEM
SKU: OLOM5BODYK
Price: 1199 EUR
Availability: InStock

OM SYSTEM

Be the first to review this product

Special Price €1,199.00 €990.91 Regular Price €1,249.00

Not in stock. Ready for shipment: 2-5 working days

SKU

OLOM5BODYK

The latest OM SYSTEM camera: the OM-5!
Small, light, technically strong and extremely durable. A camera that can go anywhere!

Safe & easy ordering - Webshop Trustmark certified
Fast and reliable worldwide shipping with DHL, UPS or PostNL
Authorised service center for Nauticam, INON....

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The OM-5 has a compact and streamlined design and can withstand all conditions. The OM‑5 features class leading IP53 dustproof, splashproof, and freezeproof design.

Specifications Olympus OM-5:

IMAGE SENSOR:
Type: 4/3'' Live MOS sensor
Effective pixels:20.4 Megapixels
Filter array:Primary colour filter (RGB)
Aspect ratio & area:4:3 / 17.3 x 13.0mm
Full resolution:21.8 Megapixels

ENGINE:
TruePicIX

FILTER:
Supersonic Wave Filter

VIEWFINDER:
Type: OLED Electronic Viewfinder
Pixel number: 2.360K dots
Diopter adjustment: Equipped ‑4.0 ‑ +2.0 diopters / built‑in type
Angle of view: Approx. 100%
Magnification: Max. 1.37x with a 50mm lens set to infinity at ‑1 dioptre (depending on selected viewfinder style)
Eye point: 27mm at ‑1 dioptre from eyepiece lens

IMAGE STABILISER:
Type: Sensor shift
Modes: Five‑dimensional, vertical or horizontal activation, automatic
Effective Compensation Range: Up to 7.5 EV steps (Sync IS) / Up to 6.5 EV steps
Live View stabilisation: Available
Lens IS priority: Available

EXPOSURE SYSTEM

Modes: Programme automatic; Aperture priority; Shutter priority; Manual; Bulb; Time; Movie; HDR; Custom shooting
Exposure compensation: +/‑ 5 EV (1, 1/2, 1/3 steps); Note: Monitor and EVF displays only up to ±3 EV.
Exposure bracketing: 2 / 3 / 5 frames (+/‑ 1/3, 2/3, 1 EV steps); 7 frames (+/‑ 1/3, 1/2, 2/3 EV steps)
ISO bracketing: 3 frames (1/3, 1/2, 1 EV steps)
AE lock: Available
My Mode: 3 settings storable
Enhancement function: Shadow Adjustment Technology; Flicker Scan: Available for M, S and silent mode (can be confirmed in Live View)
In-Built LiveND: ND2, ND4, ND8, ND16 (+1, 2, 3 or 4 steps)
HDR bracketing: 3 / 5 frames (+/‑ 2 / 3 EV steps); 7 frames (+/‑ 2 EV steps)

MULTI-EXPOSURE

Max. number of frames: 2 frames (shooting); 3 frames (editing)
Auto gain control: Available
Frame assistance: Live View

LIGHT METERING

Method: TTL open aperture light metering
Zones: 324 zones Multi‑pattern Sensing System
Detection range: ‑2 ‑ 20 EV (17mm f2.8, ISO 100)
Modes: ESP light metering; Spot metering; Centre weighted metering; Highlight; Shadow

ART FILTER

Modes: Pop Art; Soft Focus; Pale & Light Colour; Light Tone; Grainy Film; Pin Hole; Diorama; Cross Process; Dramatic Tone; Gentle Sepia; Key Line; Water colour; Vintage; Partial Colour*; Bleach Bypass; Instant Film
Variation / Effect: Available
Art Filter bracketing: Art Filters selectable; * 18 colours selectable

SENSITIVITY

Auto: (customisable, default ISO LOW ‑ 6400)
Manual: ISO LOW ‑ 25600 in 1/3 or 1 EV ISO steps

SHUTTER

Shutter type: Computerised focal‑plane shutter
Self timer: 2s / 12s / Custom

SHUTTER SPEEDS

Shutter speed range: 1/8000 ‑ 60s (in 1/3, 1/2, 1 EV steps)
Bulb mode: Up to 30 minutes (selectable longest time in the menu, default: 8 minutes)
High res shot
Shutter type: Electronic shutter
Shutter speed: 1/8000 ‑ 60s
Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
Resolution: JPEG: 10368x7776 / 8160 x 6120 / 5760 x 4320 RAW: 10368 x 7776; Equivalent to 80M / 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift); Available in P/A/S/M mode; You need to install OM Workspace to develop on a PC.
Handheld High res shot
Shutter type: Electronic shutter
Shutter speed: 1/8000 ‑ 60s
Resolution: JPEG: 8160 x 6120 / 5760 x 4320 RAW: 8160 x 6120; Equivalent to 50M / 25M pixel sensor (8 shots combined into a single JPEG using sensor shift); Available in P/A/S/M mode; Flash can not be used
Anti-shock mode
Shutter type: Electronic first curtain shutter
Shutter speed: 1/320* ‑ 60s
Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30s; * For speeds over 1/320 sec., mechanical shutter will automatically be selected.
Silent mode
Shutter type: Electronic shutter
Shutter speed: 1/32000 ‑ 60s
Start delay: 0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15. 30s
Flicker Scan
Stills: 1/7634 ‑ 1/50s
Movies: 1/250 ‑ 1/30s *; * Frame rates greater 30fps are limited to their reciprocal value

WHITE BALANCE

AUTO WB system: Advanced detection system with Live MOS sensor
Manual White balance (One-Touch): Available
White balance bracketing: 3 frames / +/‑ 2, 4, 6 mired steps
One-touch white balance: 4 custom settings can be registered
Custom WB: 1 setting can be registered at Kelvin temperature (2000K ‑ 14000K)
Preset values: Tungsten; Flourescent 1; Sunlight; Flash; Overcast; Shade; Underwater
Auto Flash adjustment: Off / Auto WB / Flash
Keep warm colour: On / Off

SEQUENCE SHOOTING

Speed (H): Approx. 10fps; Max. number of frames: RAW 149 / JPG (LF): Up to card capacity
Speed (L): 6fps; Max. number of frames: RAW / JPG (LF): Up to card capacity
Silent mode
Speed (H): Approx. 30fps; Max. number of frames: RAW 18 / JPG (LF): 20
Speed (L): Approx. 10fps; Max. number of frames: RAW 138 / JPG (LF): Up to card capacity
Pro Capture mode
Speed (H): Approx. 30fps
Speed (L): Approx. 10fps
Pre-shutter Frames: 0 - 14 frames (recorded by half release prior to full release)
Frame count limiter: 1- 99 frames / Off (unlimited frames) (incl. pre‑shutter frames)
Conditions: Memory card: KIOXIA KSDXU‑A064G; When using the M.Zuiko Digital ED 12‑40mm F2.8 Pro; Maximum sequential shooting speed may be affected by several factors including lens used, brightness, aperture, shutter speed, and ISO setting.; The actual shooting speed may become slower than the set shooting speed by a few frames per second. When using ISO Bracketing, performance will be affected at ISO 2000 or above.
Interval shooting: Interval: 1s ‑ 24h; Max. number of frames: 9999; Smoothing

IMAGE PROCESSING

Colour space: sRGB / AdobeRGB
Sharpness + Contrast: 5 levels
Contrast: 5 levels
Saturation: 5 levels
Black & White filter: Yellow, Orange, Red, Green
Black & White toning: Sepia, Blue, Purple or Green in Black & White mode
Picture mode
Gradation: 4 levels (auto, high key, normal, low key)
Engine: TruePic IX
Art Filter bracketing: Available
Tele converter effect: 2x
Fisheye compensation: Available when M.Zuiko Digital ED 8mm Fisheye PRO is attached Angle of view adjustable in 3 levels Compensation automatically ON when using Underwater Modes, available (can be confirmed in Live View)

EXTERNAL FLASH CONTROL

X-sync speed: 1/250s / 1/8000s (Super FP Mode)
Type: TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL
Modes: Auto; Red-eye reduction; Slow synchronisation; 2nd curtain and slow synchronisation; Fill-in for exclusive flash; Manual
Intensity: +/‑ 3 EV (1/3, 1/2, 1 EV steps); Note: Some functions are only available if they are supported by the external flash.
Compatible external flash: FL‑14, FL‑20, FL‑36R, FL‑50R, FL‑300R, FL‑600R, FL‑700WR, FL‑900R, STF‑8

WIRELESS FLASH CONTROL

Number of channels: 4 channels
Compatible external flash: FL‑36R, FL‑50R, FL‑300R, FL‑600R, FL‑700WR, FL‑900R
Control method: Triggered and controlled (Olympus Wireless RC Flash system)
Group setting: 4 groups; Available when used together with cameras compatible with the Olympus wireless RC flash system.
Radio wireless control: Available

MONITOR

Monitor type: Vari‑angle LCD ‑ Touch Panel
Monitor size: 7.6cm / 3.0'' (3:2)
Resolution: 1037K dots
Brightness adjustment: +/‑ 7 levels
Colour balance: +/‑ 7 levels Vivid (default) / Natural
Touch Control functions: AF area enlargement; AF area selection; Art Filter; Enlargement; Enlargement playback; Frame forward/backward; Live Guide; Scene Modes; Shooting mode; Shutter release; Super Control Panel; Wi-Fi connection

LEVEL GAUGE

Detection: 2‑axis
Display: Rear display and viewfinder

SUPER CONTROL PANEL

Displayed information: Battery indicator; Record mode; Shutter speed; Aperture value; Exposure compensation indicator; ISO; AE bracketing; AF frame; Focus mode; AEL notification; Face detection; Number of storable frames; Metering mode; Exposure mode; Exposure level view; Flash compensation value; Colour space; Gradation; Colour saturation compensation value; Sharpness compensation value; Contrast compensation value; White balance; White balance compensation value; Noise reduction; Flash mode; Drive mode; Internal temperature warning; Histogram

RECORDING FORMATS

RAW: 12bit
RAW & JPEG: Applied parallel recording
JPEG: Applied
Aspect ratio: 4:3 / 3:2 / 16:9 / 6:6 / 3:4

IMAGE SIZE

RAW: 5184 x 3888 compressed; 5184 x 3888 Fine (compression: 1/4)

STILL IMAGE RECORDING

EXIF: 2.3
DCF: Applied
RAW: Applied

MOVIE RECORDING SYSTEM

Recording format: MOV(MPEG‑4AVC/H.264)
Picture mode: Flat, OM‑Log400
Time code: Rec run / Free run; Drop frame / Non‑drop frame
Image Stabilisation Mode: Applied Sensor shift
: M‑IS1 (Image sensor shift and electronic image stabilizer with multi motion IS); M‑IS2 (Image sensor shift with multi motion IS)
4K Movie quality: 4096 x 2160 (C4K) / 24p / IPB (approx. 237 Mbps); 3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)
HD Movie quality: Full HD 1920 x 1080 (16:9) / 30p, 25p, 24p / ALL‑I (A‑I), IPB (SF, F, N) (MOV); Full HD 1920 x 1080 (16:9) / 60p, 50p / IPB (SF, F, N) (MOV); HD 1280 x 720 (16:9) / 60p, 50p, 30p, 25p, 24p / ALL‑I (A‑I), IPB (SF, F, N) (MOV); ALL‑I: ~ 202 Mbps; FullHD IPB (SF: ~52Mbps, F: ~30Mbps); HD IPB (SF: ~26Mbps, F: ~14Mbps, N: ~10Mbps)
Maximum Recording Time: Up to card capacity
Max. file size: 4GB (AVCHD)
Exposure Modes: Aperture priority; Manual; Programme automatic; Shutter priority; * Frame rate may drop when using certain art filter; Class 10 or higher SD card is recommended for movie shooting; UHS‑II or UHS‑I U3 card is recommended for ALL‑I shooting

MOVIE SPECIALTIES

Rec Indicator: Red Recording Frame during shooting available
Vertical Video: Available
High-Speed Recording: 1920x1080 (MOV) / 120fps
Time lapse: 4k, 1080p, 720p (AVI Motion JPEG®)
Fast motion: Available
Slow motion: Available
Art Filter: Cross Process; Diorama; Dramatic Tone; Gentle Sepia; Grainy Film; Key Line; Light Tone; Pale & Light Colour; Pin Hole; Pop Art; Soft Focus; Vintage; Partial Colour*; Bleach Bypass; * 18 colours selectable; Frame rate limited to 30fps or lower
HDMI Live View
Monitor mode: Video signal and info display is processed; While recording, footage is simultaneously displayed on the HDMI monitor and on the camera, but the info display is shown only on either one of the two.; While playing movies, footage is simultaneously displayed on the HDMI monitor (normal size) and on the camera (normal size or enlarged).
Record mode: Only video signal is processed; Movie quality is set to YCbCr 4:2:2 (8 bit), frame rate follows movie setting (24p, 30p and 60p settings are not recommended.), and sound will be recorded.
Flicker Scan: Available in M mode (can be confirmed in Live View)

SOUND RECORDING SYSTEM

Speaker: Built‑in mono speaker
Internal microphone: Built‑in stereo microphones; External stereo microphone can be attached
Recording format: High quality sound recording (Stereo linear PCM/24‑bit, Sampling frequency 96kHz); Stereo PCM/16bit, 48kHz, Wave Format Base
Image footage: 30s
Microphone functions: Wind Noise Reduction; Recording Volume; Volume limiter; Audio Dubbing
Linking Olympus PCM Recorders
Functions: Slate Tone / Synchronised Audio Rec‑Movie Rec; Compatible with: LS‑100, LS‑P4, LS‑P5

VIEW IMAGES

Modes: Single; Index; Calendar; Zoom; Movie
Auto rotation: Available
Histogram in playback mode: Available
Shooting information: Off / On
Highlight/Shadow point warning: Available

ERASE / PROTECT / COPY FUNCTION

Erase modes: Single, All, Selected
Image protect mode: Single frame, Selected frames, All Frames, Release protect (Single/All selected)

IMAGE EDITING

Editing functions: RAW data edit; Red-eye reduction; Sepia; Black & White; Resize; Correction of saturation; Correction of brightness; Correction of colour balance; Shadow Adjustment; Trimming; e-Portrait; Aspect ratio

CUSTOMISATION OPTIONS

Fn Button: Equipped
My Mode: 4 settings storable (Can be set to mode dial.)
Factory reset: Full / Basic
Programmable button: Equipped

INTERFACE

Media: SD Memory Card (SDHC, SDXC, UHS‑I, UHS‑II compatible) Class 10 or higher SD card is recommended for movie shooting UHS‑II or UHS‑I U3 card is recommended for 4K, C4K, ALL‑I shooting.
Hot shoe: Equipped
Microphone jack: 3.5 ø mm mini‑jack (plug‑in power on/off)
HDMI™: Applied Micro connector (Type D) *; * "HDMI", the HDMI logo and "High‑Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.
USB 2.0 High Speed: Applied
Wireless connectivity: Wi-Fi; Bluetooth®
Communication method: Bluetooth® Low Energy Ver.4.2
SAR: 0.36W/kg; SAR quantifies the maximum level of exposure of the user to electromagnetic waves, when using the device close to the head.; SAR shall not exceed 2W/kg in accordance with regulations of France.

WI-FI FUNCTIONS

Easy Connection: QR code setting
Wireless Shooting: Live View; Power off; Rec View; Self timer; Touch AF & Shutter; P/A/S/M exposure modes; Bulb mode; Zoom; Movie recording; Live Composite; Short movie

OTHER FEATURES

WebCam: UVC (USB Video Class) / UAC (USB Audio Class)

POWER SUPPLY

Battery: BLS‑50 Lithium‑Ion Battery (included)
Sleep mode: 1, 3, 5, 10 min. and off selectable.
Battery life
Image shooting: 310 shots (using Toshiba SDHC UHS‑I Card Exceria with IS on, with no flashes attached , based on CIPA test standards)
Movie recording: 60min (standard JEITA conditions) 110min (when zoom and other operational functions are not used)
USB charging: Built‑in battery can be charged with USB (when camera power is off); Performance varies depending on different USB devices

ENVIRONMENT

Temperature: ‑10 ‑ 40°C Operating temperature / ‑20 ‑ 60°C storage temperature
Humidity: 30 ‑ 90% operation humidity / 10 ‑ 90% storage humidity

DIMENSIONS

Width: 125.3mm
Height: 85.2mm
Depth: 49.7mm
Weight: 414g (including battery and memory card); 366g (body only)

In the box:

BLS‑50 Lithium‑Ion Battery
EP‑15 Eye Cup
Shoulder Strap
Micro Four Thirds body cap (BC‑2)
Operating Instructions
Warranty Card
CB‑USB12 USB cable

More Information

More Information
Brand	OM SYSTEM
Manufacturer \| Importer	Importer: OM Digital Solutions GmbH, Willy-Brandt-Strasse 23, 20457 Hamburg, Duitsland, imprint@om-digitalsolutions.com
Manual	OM System OM-5 Manual

Reviews

Write Your Own Review

Olympus OM-5 body black

Specifications Olympus OM-5:

EXPOSURE SYSTEM

Modes

Exposure compensation

Exposure bracketing

ISO bracketing

AE lock

My Mode

Enhancement function

In-Built LiveND

HDR bracketing

MULTI-EXPOSURE

Max. number of frames

Auto gain control

Frame assistance

LIGHT METERING

Method

Zones

Detection range

Modes

ART FILTER

Modes

Variation / Effect

Art Filter bracketing

SENSITIVITY

Auto

Manual

SHUTTER

Shutter type

Self timer

SHUTTER SPEEDS

Shutter speed range

Bulb mode

High res shot

Shutter type

Shutter speed

Start delay

Resolution

Handheld High res shot

Shutter type

Shutter speed

Resolution

Anti-shock mode

Shutter type

Shutter speed

Start delay

Silent mode

Shutter type

Shutter speed

Start delay

Flicker Scan

Stills

Movies

WHITE BALANCE

AUTO WB system

Manual White balance (One-Touch)

White balance bracketing

One-touch white balance

Custom WB

Preset values

Auto Flash adjustment

Keep warm colour

SEQUENCE SHOOTING

Speed (H)

Speed (L)

Silent mode

Speed (H)

Speed (L)

Pro Capture mode

Speed (H)

Speed (L)

Pre-shutter Frames

Frame count limiter

Conditions

Interval shooting

IMAGE PROCESSING

Colour space

Sharpness + Contrast

Contrast
