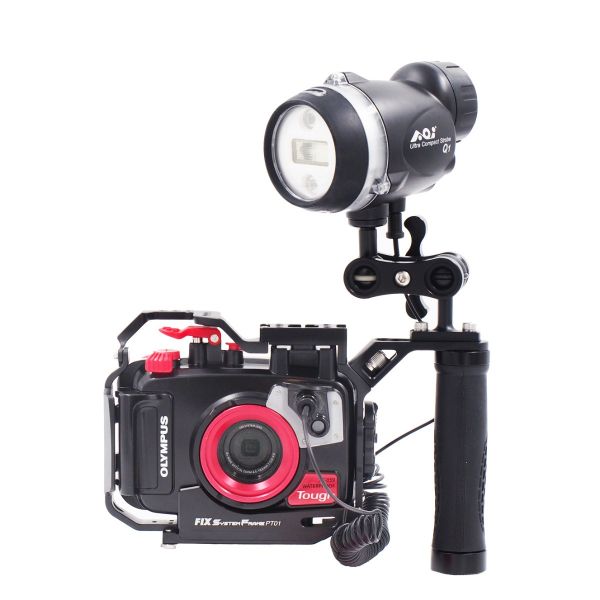

OM System Tough TG-7 camera in a complete package with housing, AOI Q1 manual underwater strobe incl. batteries and charger, optical flashcable and a useful system frame.
- Safe & easy ordering - Webshop Trustmark certified
- Fast and reliable worldwide shipping with DHL, UPS or PostNL
- Authorised service center for Nauticam, INON....
The OM System Tough TG-7 is the successor to the popular Olympus Tough TG-6. High image quality, light-sensitive f/2.0 lens, super macro capabilities and 4K video (also vertical). With special underwater programs and charging via USB-C.
The OM SYSTEM TG-7 is a rugged camera that serves as an excellent foundation for a compact underwater camera system with outstanding image quality and superior macro capabilities.
The camera is equipped with special underwater programs and can be used with the optional underwater housing to depths of up to 45 meters. The TG-7 even has dual-layer protective glass on the front lens to prevent fogging.
The camera itself is also waterproof, making it highly suitable for poolside or rainy-day photography. However, for snorkeling or diving, the underwater housing is essential.
It not only increases the maximum depth to 45 meters but also provides additional protection against scratches, salt, sand, and more. Furthermore, the housing's buttons are larger and much easier to operate underwater. The underwater housing also offers expansion options for flash units, lights, wide-angle lenses, and handle trays for stable and comfortable handling.
Five different underwater shooting modes optimize settings for various scenes: Underwater Wide, Underwater Snapshot, Underwater Macro, Underwater Microscope, and Underwater HDR. Additionally, the white balance modes Underwater: Shallow, Middle, and Deep automatically adjust based on the underwater shooting mode, but manual adjustments are also possible.
Vertical video is also supported on the TG-7, so videos recorded in a vertical orientation on the camera are saved as vertical video files, making them easy to share on social media without the need for editing software.
The TG-7 is equipped with a USB Type-C connection for convenient and fast battery charging.
The high-speed back-lit CMOS image sensor, anti-reflective coating on both sides of the sealing glass, and TruePic VIII image processing processor ensure exceptionally high image quality. The bright F2.0 lens with 4x optical zoom and RAW support further contribute to this.
The macro system offers close-up capabilities as close as 1 centimeter from the edge of the lens with a maximum image magnification of 7x, enabling stunning macro photography. Other features include Pro Capture Mode and Interval Shooting with Time Lapse Movie generation.
The Tough TG-7 excels in close-up photography, with an impressive shooting range of just 1 cm from the edge of the lens and a maximum image magnification of 7x (35mm equivalent). In addition to the Microscope mode, Microscope Control mode, and Focus Stacking mode, there is also a Focus Bracketing mode. With these capabilities, (underwater) photographers can capture beautiful images of tiny subjects that are (almost) invisible to the naked eye.
The camera is freeze-proof down to -10°C, dustproof, capable of withstanding falls of up to 2.1 meters, and crushproof up to one hundred kilograms.
Other features:
Built-in GPS, air pressure, shooting direction, and temperature sensors. This model is equipped with a Field Sensor System that automatically records location data (latitude and longitude), temperature, water temperature, altitude (water depth), and shooting direction tracking data while traveling. Load this information into the OM Image Share (OI.Share) smartphone app to link and display the route traveled along with the altitude (water depth) in recorded images.
Pro Capture Mode starts recording 0.5 seconds before the full shutter press and continues sequential shooting at 10 fps, making it convenient for capturing shots that are difficult to time, such as flying insects and a milk drop coronet.
Interval Shooting supports up to 299 shots. After shooting is complete, a Time Lapse Movie is automatically generated. In interval shooting, users can set shooting interval priority and exposure equalization processing to deal with sudden changes in exposure between frames.
The optional RM-WR1 Wireless Remote Control enables remote shooting and is weather-resistant.
The Tough TG-7 is equipped with a Construction mode, making it an ideal choice for business purposes as well.
Some specifications of the OM System Tough TG-7:
Image Sensor
Type: 1/2.33'' CMOS
Effective pixels: 12 Megapixels
Full resolution: 12.7 Megapixels
Filter array: Primary colour filter (RGB)
Image size
Aspect ratio: 4:3 / 3:2 / 16:9 / 1:1 / 3:4
Resolution: 4000 x 3000 - 640 x 480
RAW: Yes
Lens
Maximum aperture: 2.0 - 4.9
Aspherical glass elements: 3
Focal length (equiv. 35mm): 25 - 100mm
Focal length: 4.5 - 18.0mm
Filter diamater: 40.5mm Adapter CLA-T01 required
Optical zoom: 4x (WIDE)
Structure: 9 lenses / 7 groups
Monitor
Monitor type: LCD
Resolution: 1040K dots
Monitor size: 7.6cm / 3'' (3:2)
Brightness adjustment: +/- 7 levels
Live View: Available
Focusing System
Method: TTL iESP auto focus with contrast detection
AF illuminator: Equipped
AF lock: Available
Standard mode: 0.1m - ∞ (wide) / 0.1m - ∞ (tele)
Super Macro Mode: Closest focusing distance: 1cm
Microscope Mode: Zoom capability while being in Super Macro Mode
AOI Q1 Ultra Compact Strobe (UCS-Q1) Black
Manual compact underwater strobe. The UCS-Q1 Black strobe has a guide number of 22 and a wide coverage of 85 degree with diffuser.
The Control panel of the UCS-Q1 is kept simple with just two buttons and a single knob. The knob controls the power setting; the maximum brightness is at number 7 or the equivalent of Guide Number 22. Keeping the strobe to only manual function means that when used with an automatic compact camera, it is easy to obtain the desired the brightness. Just adjust the brightness of the strobe to match the exposure of the camera. The strobe has a very useable beam angle of 85 degrees with the diffuser on.
The left button activates the continuous light function, which has 3 power setting. The different power settings can be obtained by cycling through the button. The highest setting is at 700 lumens which is bright enough for macro shots or even as an underwater torchlight. The continuous light also works as a focus light, allowing for quicker focusing and determining the desired strobe position. In keeping with the concept of “My First Strobe”, the simplicity aspect extends to the ownership experience and maintenance. The buttons and knobs are clearly labelled – making it easy to control, even with gloves on.
The battery compartment is secured with a screw-on cap that is sealed with two o-rings to prevent accidental flooding. Should the battery compartment flood, it does not affect the electronic compartment as the two are kept separate and preventing a hefty repair bill. The strobe is powered by two 18650 lithium batteries, which offers a up to 2000 flashes on a single charge and provides consistent power delivery, even at low levels. The strobe is equipped with power stand-by and auto power-off features to conserve power and increase the lifespan of the strobe.
Specifications of the AOI Q1;
Main Body Material: Polycarbonate + Glass Fiber
Waterproof Level: 60 Meters / 200 Ft.
Guide Number: 22
Color Temperature: 5600K
Beam Angles: Horizontal- 85°, Vertical- 85° (with Diffuser)
Flash recharge time: 0.85 Second (Full Power)
Number of flashes: 2000 Times Full Flash with 3500mAh Li-Ion Batteries x2
Pre-Flash Counting: Auto Detect and Setting
Led light;
Maximum Output: 700 Lumens
Color Temperature: 5600K
Beam Angle: 45°
Burn Time: 160 Minutes (Max. Brightness with 3500mAh Li-Ion Batteries x2)
Power source: 18650 (5A Min) Li-Ion Rechargeable Batterie x2
Dimensions: 125mm (L) X76mm (W) X130mm (H) (Ball Mount Included)
Weight;
Underwater : Approx. 70g (with batteries)
On Land : Approx. 520g (with batteries)
Included with the strobe ;
Diffuser, 2x Main Seal O-Ring, O-Ring Remover, Silicon Grease, Secure Line, Battery Storage Case
Booklet with Practical Information on the OM System TG-7
Underwater photographer Ron Offermans has created a special supplement with practical information specifically for the OM System TG-7. These supplements are very popular and are available for various cameras and strobes. In this supplement, you'll learn how to manage all the manual settings the camera offers and how to correctly synchronize the camera with an external flash. It also provides guidance on how to best use the macro and autofocus settings. In short, everything you need to create beautiful, sharp, and well-lit photos. Highly recommended to order alongside the underwatercamera! See the link at the bottom of this page. Available in Dutch, German and English.
| Brand | Olympus |
|---|---|
| Manufacturer | Importer | Importer: OM Digital Solutions GmbH, Willy-Brandt-Strasse 23, 20457 Hamburg, Duitsland, imprint@om-digitalsolutions.com |
| Manual | OM System TG-7 Manual |
| Max. depth | 45 meters |
| Camera brand | OM SYSTEM / Olympus |
